Water & Foam Fire Extinguisher

Foam Based Mobile Fire Extinguishers

KANEX AR-AFFF FOAM CARTRIDGE OPERATED fire extinguishers provide a fast, power full means of tackling flammable liquid fires. The foam forms a seal over the surface to prevent re-ignition. Ideal for multi-risk usage and also applicable against class ‘A’ hazards such as wood, cloth, trash and other materials that leave an ash.

Available in Kg

APPLICATION AREA

Special Features

AFFF agent confirming IS:4989 (Part-II) capable of fighting against Class A and B fires
RQ series products are designed to achieve the best Fire Rating Refer the above table
Internally Plastic coated and Externally Pure Polyester (PP) powder coated (UV Resistant)
Hydraulically tested as per standard requirements
Anti-corrosive treatment: Semi Automatic Seven tank Hot dipping Phosphate treatment Process
Easy to maintain, recharge & service
Cap, drain plug made up of brass as per IS : 319 PVC braided hose having burst pressure not < 50 kgf/cm with the SS spring with the aluminum air aspirated nozzle
Welding Procedure (WPS) approved by TPI with 6G certification BIS Approved (IS 15683:2006), ISI marked and CE Certified

TECHNICAL SPECIFICATIONS

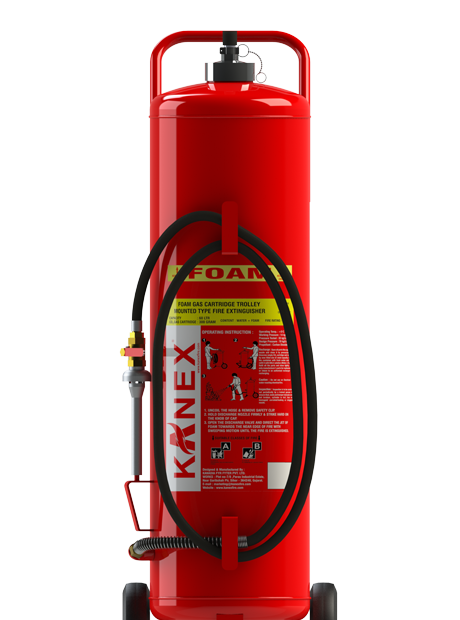

MODEL KFMRQ-45 MODEL KFMRQ-45
Capacity 45 Ltr Design Hose & Nozzle
Fire Rating 20A:233B Height (Approx.) 1000 mm
Diameter (Approx.) 300 ±10 mm Average Discharge time 160 Sec.
Average Range of throw 9 m Average % Discharge 90%
Operating Temperature +5 °C to +55 °C Service/Max. service/Test Pressure 15 / 17 / 35 bar
Expelling Agent Co2 Full Weight (Approx.) 85 kg
Empty Weight (Approx.) 40 kg Shipping Weight (Approx.) 86 kg
Mounting Trolley Mounted Approvals BIS
Foam Fire Extinguisher
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFMRQ 45

KFM

Spare Parts Book

MSDS

MODEL KFMRQ-60 MODEL KFMRQ-60
Capacity 60 Ltr Design Hose & Nozzle
Fire Rating 20A:233B Height (Approx.) 1200 mm
Diameter (Approx.) 300 ±10 mm Average Discharge time 180 Sec.
Average Range of throw 9 m Average % Discharge 90%
Operating Temperature +5 °C to +55 °C Service/Max. service/Test Pressure 15 / 17 / 35 bar
Expelling Agent Co2 Full Weight (Approx.) 108 kg
Empty Weight (Approx.) 48 kg Shipping Weight (Approx.) 109 kg
Mounting Trolley Mounted Approvals BIS
Foam Fire Extinguisher
DOWNLOAD TECHNICAL SPECIFICATIONS

Brochure

GTP GAD KFMRQ 60

KFM

Spare Parts Book

MSDS
