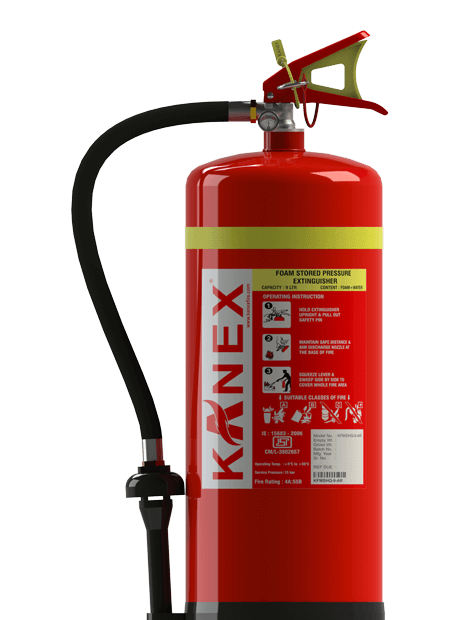

KANEX AFFF Foam Fire Extinguishers provide a fast, powerful means of tackling flammable liquids. The foam forms a seal over the surface to prevent re-ignition. Ideal for multi-risk usage and also applicable against Class ‘A’ hazards such as wood, cloth, trash, and other materials that leave an ash.
AFFF is Aqueous Film Forming Foam concentrate, produces thin, yet strong film on the surface of hydrocarbon fuels thereby sealing the fuel surface and preventing fuel vapor release. Due to presence of Fluorocarbon surfactant the spreading characteristic of the foam is such that a positive, fast spreading coverage action takes over the fuel surface, resulting fast extinguishment. The synthetic base imparts good shelf life of the concentrate free from settling ingredients and bad odor.
| MODEL | KFMSHQ-6-AR | MODEL | KFMSHQ-6-AR |
|---|---|---|---|
| Capacity | 6 Ltr | Design | Hose & Nozzle |
| Fire Rating | 2A:34B* | Height (Approx.) | 530 mm |
| Diameter (Approx.) | 150±10 mm | Average Discharge time | 22 Sec. |
| Average Range of throw | 5 m | Average % Discharge | 95% |
| Operating Temperature | +5 °C to +60 °C | Service/Max. service/Test Pressure | 15 / 17 / 35 bar |
| Expelling Agent | Nitrogen (UHP Grade) | Full Weight (Approx.) | 9.3 kg |
| Empty Weight (Approx.) | 3.3 kg | Shipping Weight (Approx.) | 9.6 kg |
| Packing Standard | 2 in 1- 22.5"X6.75"X14.10” | Mounting Bracket | Wall bracket |
| Approvals | CE |
| MODEL | KFMSHQ-9-AR | MODEL | KFMSHQ-9-AR |
|---|---|---|---|
| Capacity | 9 Ltr | Design | Hose & Nozzle |
| Fire Rating | 4A:144B | Height (Approx.) | 575 mm |
| Diameter (Approx.) | 180±10 mm | Average Discharge time | 31 Sec. |
| Average Range of throw | 6 m | Average % Discharge | 95% |
| Operating Temperature | +5 °C to +60 °C | Service/Max. service/Test Pressure | 15 / 17 / 35 bar |
| Expelling Agent | Nitrogen (UHP Grade) | Full Weight (Approx.) | 14.0 kg |
| Empty Weight (Approx.) | 5.0 kg | Shipping Weight (Approx.) | 14.5 kg |
| Packing Standard | 2 in 1- 24.75"X8"X8” | Mounting Bracket | Wall bracket |
| Approvals | BIS & CE |
