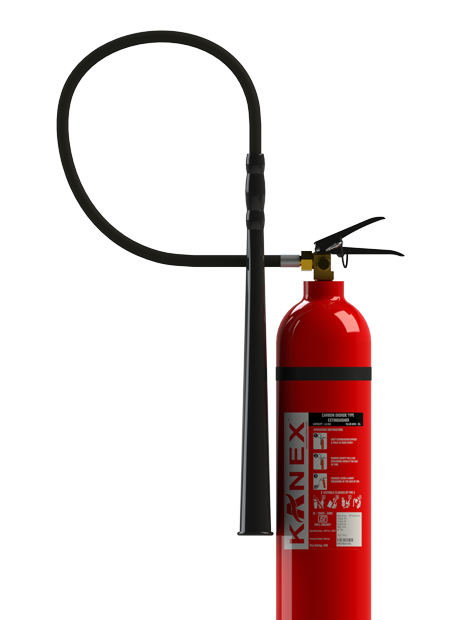

KANEX CO2 type Fire Extinguishers are environmentally safe and designed to suppress the fires where Class B, C and Electrically energized fires could occur. CO2 Extinguishers are advisable to use in Indoors where wind and drafts doesn’t affect discharge and where clean medium required which doesn’t leaves residue.
Advantages of having aluminum body fire extinguishers are lighter weight compared to manganese steel bodies and have longer life
| MODEL | KFCHQ-2-AL | MODEL | KFCHQ-2-AL |
|---|---|---|---|
| Capacity | 2 kg | Design | Bend pipe and Horn |
| Fire Rating | 13 B | Height (Approx.) | 580 mm |
| Diameter (Approx.) | 108±10 mm | Average Discharge time | 9 Sec. |
| Average Range of throw | 2 m | Average % Discharge | 98% |
| Operating Temperature | -30 °C to +60 °C | Service/Max. service/Test Pressure | 60 / 105 / 205 bar |
| Full Weight (Approx.) | 6 kg | Empty Weight (Approx.) | 3.8 kg |
| Shipping Weight (Approx.) | 6.5 kg | Mounting Bracket | Wall bracket |
| Approvals | CE |
| MODEL | KFCHQ-4.5-AL | MODEL | KFCHQ-4.5-AL |
|---|---|---|---|
| Capacity | 4.5 kg | Design | Hose and Horn |
| Fire Rating | 55B | Height (Approx.) | 700 mm |
| Diameter (Approx.) | 140±10 mm | Average Discharge time | 21 Sec. |
| Average Range of throw | 2 m | Average % Discharge | 98% |
| Operating Temperature | -30 °C to +60 °C | Service/Max. service/Test Pressure | 60 / 105 / 205 bar |
| Full Weight (Approx.) | 12.3 kg | Empty Weight (Approx.) | 7.3 kg |
| Shipping Weight (Approx.) | 12.8 kg | Mounting Bracket | Wall bracket |
| Approvals | BIS & CE |
